Customized IP55 Movable Weatherproof Cabinet Solution with Handle for Outdoor Application
Introduction of IP55 Movable Weatherproof Cabinet
The IP55 movable weatherproof cabinet is a cabinet designed specifically for space-constrained outdoor deployments. For lowering the weight and can be easily transferred between outdoor and indoor environments, it is made of both aluminum and galvanized sheets, while ensuring the weight and stability and delivering an optimal balance of robust protection, efficient thermal management, and intelligent onboard features. Two handles, four wheels and lifting rings provide the convenience of shifting from different environments, to realize a high-efficient maintenance.
Rated IP55, it offers reliable defense against dust ingress and low-pressure water jets, making it well-suited for a wide range of applications. For installation of non-standard equipment, the cabinet adopts two shelves that made of galvanized sheet to provide better load capacity, and equipped with a 500W air conditioner for cooling the equipment, and 20mm foam for thermal isolation. On the top of the cabinet, a Din-rail type 13A socket is installed, so that to provide a extra power connection for maintenance.
Application of IP55 Movable Weatherproof Cabinet
The IP55 movable weatherproof cabinet is suitable for:
Street-side communication nodes – such as smart city infrastructure, traffic signal controllers, and public Wi-Fi access points.
Remote monitoring and control sites – including environmental monitoring stations, oil and gas field automation, and agricultural irrigation systems.
Temporary or emergency communication deployments – where fast setup and easy relocation are required, such as disaster relief, large-scale events, or construction sites.
Details of IP55 Movable Weatherproof Cabinet
| Configuration |
Item |
Technical Parameter |
| Cabinet |
Mode |
IP55 Movable Weatherproof Cabinet |
| IP Grade |
IP55 |
| Dimension |
H900mm×W700mm×D850mm (can be customized) |
| Internal Space |
2pcs of 600mm(W) shelf |
| Material |
Material: Single-layer, 2.0mm AL5052 for cabinet and
door, 1.5mm thickness galvanized sheet for
shelves
|
| Insulation |
20mm PEF |
| Coating |
Polyester powder coating |
| Color |
RAL7035 |
| Lock |
Anti-theft three-point locking system |
| Hinge |
Inner hinge |
| Installation |
Floor mounted, movable |
| Cable Routing |
Cable in and out from the bottom of cabinet |
| Maintenance |
From the front door |
| Cooling |
Air Conditioner |
220VAC, 50Hz, 500w |
| Accessories |
Wheel |
4pcs, with breaks |
| Handle |
2 pcs |
| Lifting Ring |
4 pcs |
Product Tags:
|
|

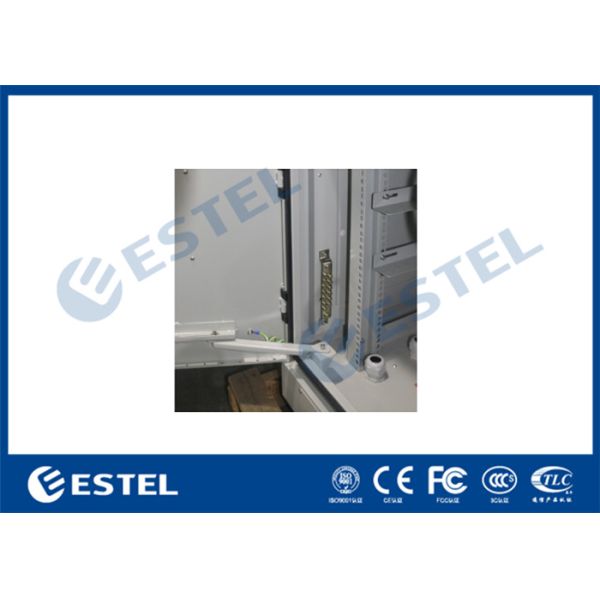

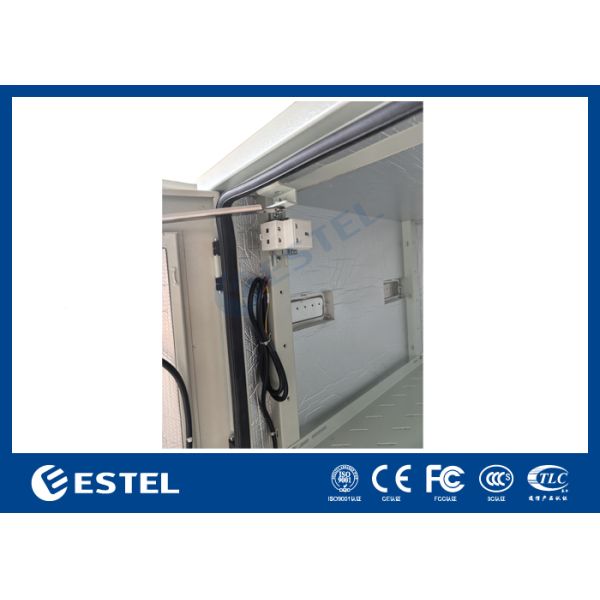

Customized IP55 Movable Weatherproof Cabinet Solution with Handle for Outdoor Application Images
|
